New Outbound Route

This creates a new Outbound Route dialplan record. An Outbound Route routes calls to your Gateways, Bridges etc..

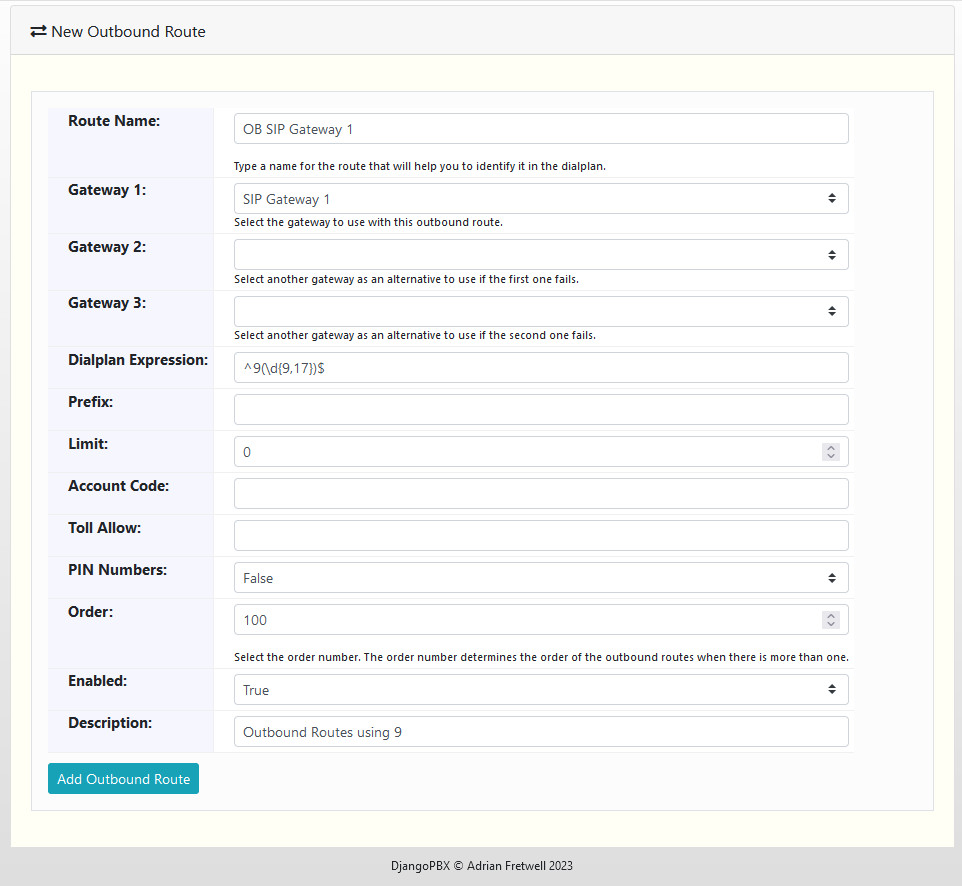

../../_images/new_outbound_route.jpg

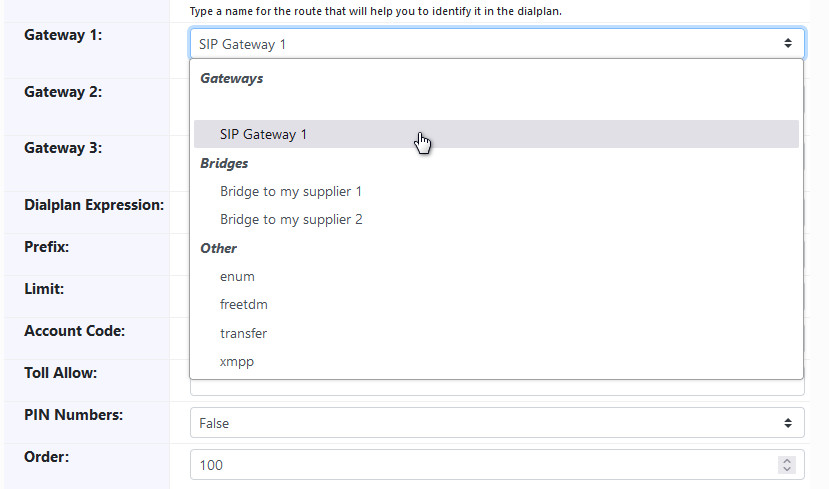

The screenshot below shows the Gateway select drop-down in more detail:

../../_images/new_outbound_route_gateway.jpg

Options

  • Route Name: A name for this Outbound Route.

  • Gateway 1: The first gateway to try.

  • Gateway 2: An alternative gateway to try if Gateway 1 fails.

  • Gateway 3: A third Gateway to try if Gateway 2 fails.

  • Dialplan Expression: This is often a regular expression that matches digits dialled when an exteral route is required.

  • Prefix: A prefix for the Dialplan Expression.

  • Limit: Set the maximum number of simultaneous call allowed.

  • Account Code: Can be used as a tag for billing purposes.

  • Toll Allow: Represents a string of characters set in the ${toll_allow} channel variable, used to control access to this route.

  • PIN Numbers: Specified if PIN Numbers are used to control access to this route.

  • Enabled: If the Outbound Route is enabled or disabled.

  • Description: A way to describe what the Outbound Route is used for.

Outbound Route Dialplan Entry Created

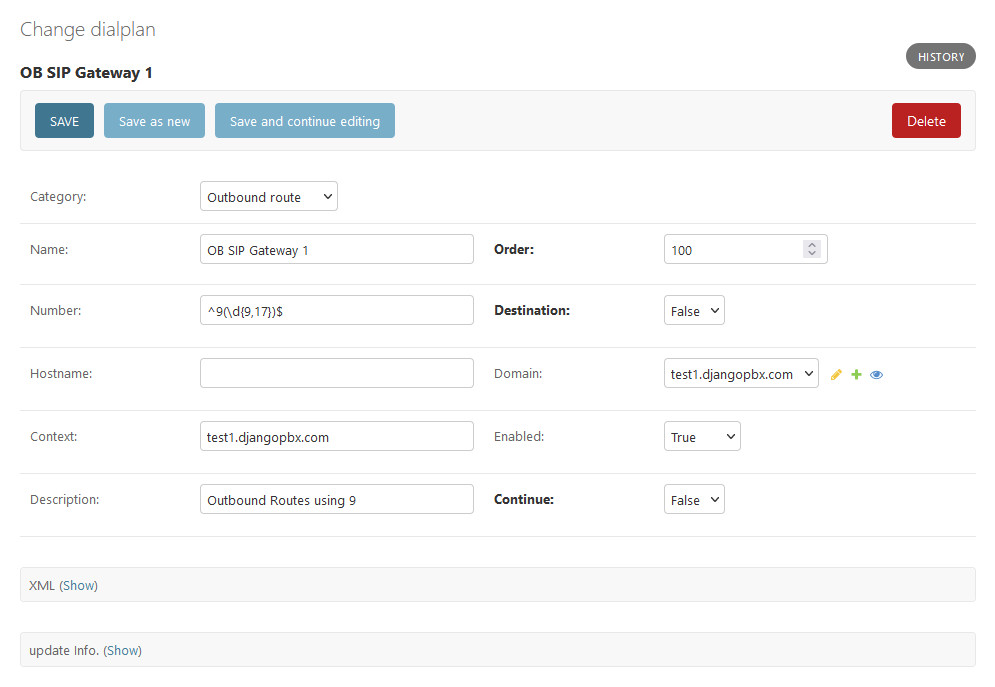

The screenshot below shows the dialplan record created from the details entered in the edit screenshot above:

../../_images/new_outbound_route_dialplan.jpg

Example XML

Below is the dialplan XML that was generated by the details entered in the edit screenshot above:

<extension name="OB SIP Gateway 1" continue="false" uuid="a6a99859-e024-465f-88fa-b1829ae9efb4">
  <condition field="${user_exists}" expression="false"/>
  <condition field="destination_number" expression="^9(\d{9,17})$">
    <action application="export" data="call_direction=outbound" inline="true"/>
    <action application="unset" data="call_timeout"/>
    <action application="set" data="sip_h_X-accountcode=%{accountcode}"/>
    <action application="set" data="hangup_after_bridge=true"/>
    <action application="set" data="effective_caller_id_name=${outbound_caller_id_name}"/>
    <action application="set" data="effective_caller_id_number=${outbound_caller_id_number}"/>
    <action application="set" data="inherit_codec=true"/>
    <action application="set" data="ignore_display_updates=true"/>
    <action application="set" data="callee_id_number=$1"/>
    <action application="set" data="continue_on_fail=true"/>
    <action application="sleep" data="${sleep}"/>
    <action application="bridge" data="sofia/gateway/b2207659-af6c-46f3-9269-c9dc98b88866/$1"/>
  </condition>
</extension>
