Dialplan Categories

Dialplan Categories help to organise and manage dialplans.

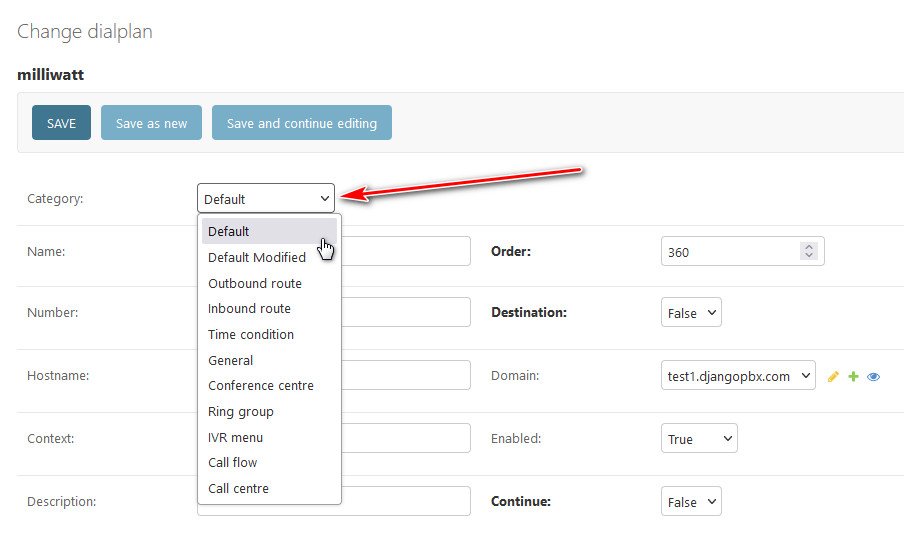

../../_images/dialplan_categories.jpg

These categories are generated from the installed applications. If an application creates or maintains any form of dialplan then it should provide its own category.

The category is defined in the apps.py file of the application. Below is the apps.py file for the Ring groups application:

class RinggroupsConfig(AppConfig):
    default_auto_field = 'django.db.models.BigAutoField'
    name = 'ringgroups'
    verbose_name = _('Ring Groups')
    pbx_uuid = '77578687-8eb7-4bb7-a00a-ddf3e8b7169f'
    pbx_category = 'Switch'
    pbx_subcategory = ''
    pbx_version = '1.0'
    pbx_license = 'MIT License'
    pbx_dialplan = True
    pbx_dialplan_category = 'Ring group'

As you can see pbx_dialplan is set to True, this indicates that Ring Groups do create or maintain dialplans.

pbx_dialplan_category defines the category.

Special Categories

There are two special categories Default and Default Modified.

  • Default

    Indicates that the dialplan is one of the default ones installed when the domain was created. Any modifications to a Default dialplan will be lost if the management command dialplandefaults is run for this domain.

  • Default Modified

    This is a way of flagging that this is a Default dialplan but it must not be overwritten when restoring defaults.
