New Time Condition

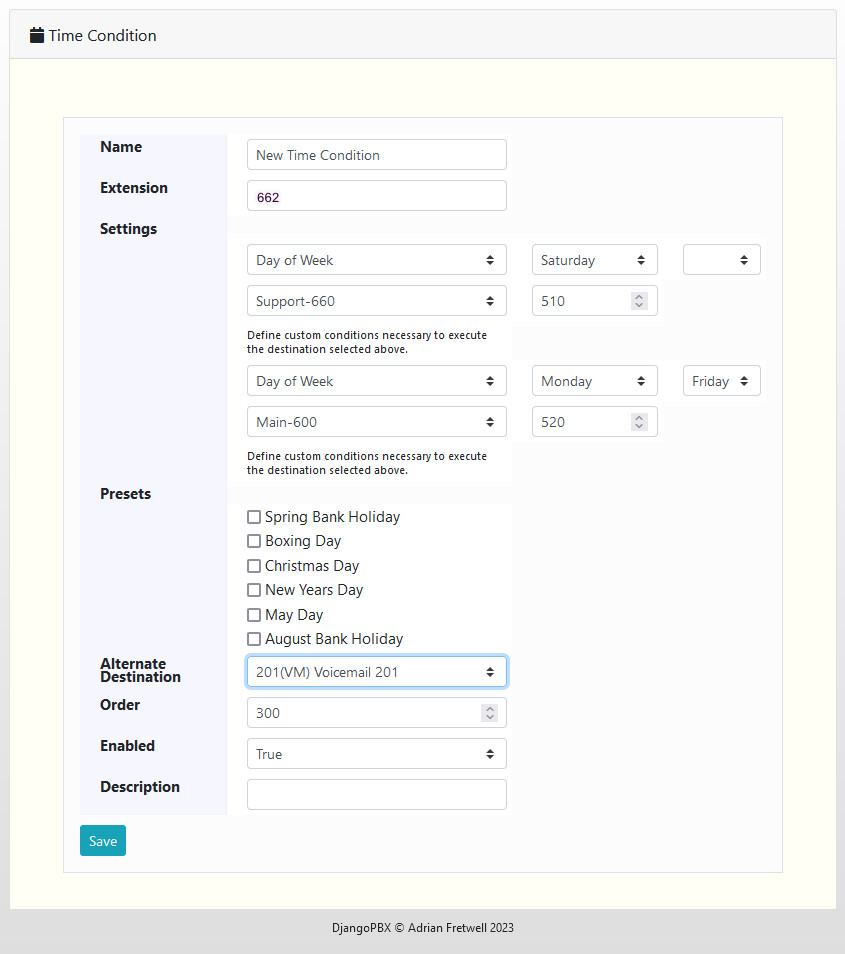

This creates a new Time Condition dialplan record. A Time Condition will allow the system to dynamically route calls based on the time of day and/or the day of the week and/or the day of the month/year. Time Conditions can also use preset values definded in the Default Settings to match a specific date and time like New Year’s Day.

../../_images/new_time_condition.jpg

Options

  • Name: A name for the time condition.

  • Extension: The Dialplan Number to be used for this Time Condition (it must not already exist).

  • Settings: An expandable section for date and time parameters and their associated destinations.

  • Presets: Various pre-defined conditions.

  • Alternate Destination: Destination to route the call to if none of the conditions in the settings section match.

  • Order: Specifies the order in which this Time Condition is evaluated.

  • Enabled: If the Time Condition is enabled or disabled.

  • Description: A way to describe what the Time Condition is used for.

Time Condition Dialplan Entry Created

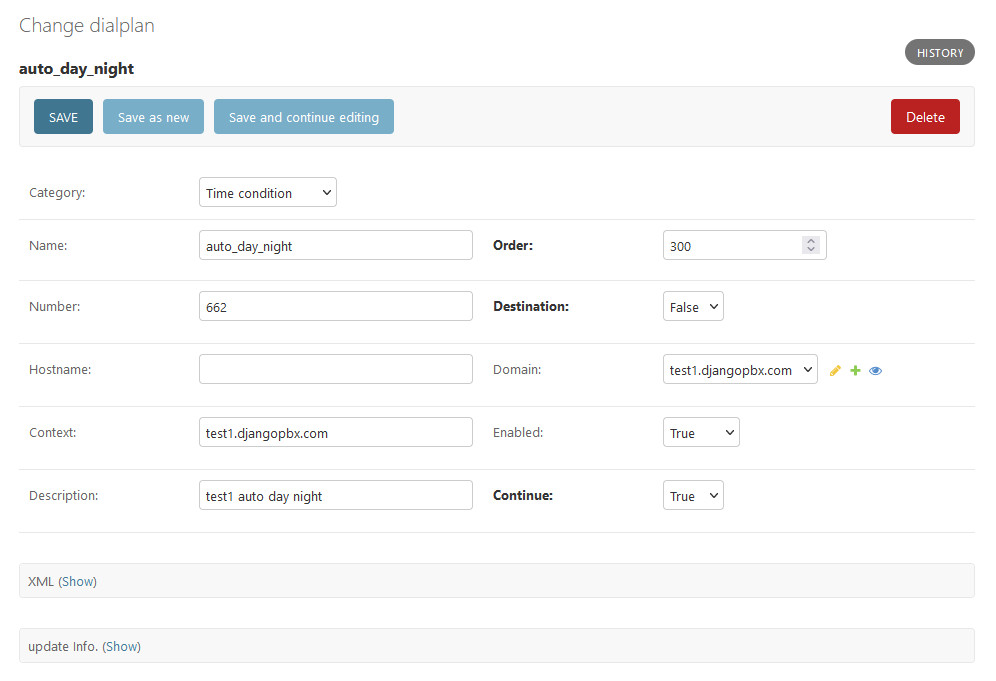

The screenshot below shows a dialplan record created from details entered similar to the edit screenshot above:

../../_images/new_time_condition_dialplan.jpg

Example XML

Below is the dialplan XML that was generated from a typical Time Condition:

<extension name="auto_day_night" continue="true" uuid="616194bd-ec75-46d3-b777-473108c9b86b">
    <condition field="destination_number" expression="^662$"/>
    <condition wday="2-5" minute-of-day="510-1020" break="never">
        <action application="transfer" data="600 XML test1.djangopbx.com"/>
    </condition>
    <condition field="destination_number" expression="^662$"/>
    <condition wday="6-6" minute-of-day="510-990" break="never">
        <action application="bridge" data="sofia/profile/internal/$1@supplier1.com"/>
    </condition>
    <condition field="destination_number" expression="^662$"/>
    <condition mday="26" mon="12" break="never">
        <action application="set" data="preset=boxing_day"/>
        <action application="transfer" data="*99201 XML test1.djangopbx.com"/>
    </condition>
    <condition field="destination_number" expression="^662$"/>
    <condition mday="25" mon="12" break="never">
        <action application="set" data="preset=christmas_day"/>
        <action application="transfer" data="*99201 XML test1.djangopbx.com"/>
    </condition>
    <condition field="destination_number" expression="^662$"/>
    <condition mday="1" mon="1" break="never">
        <action application="set" data="preset=new_years_day"/>
        <action application="transfer" data="*99201 XML test1.djangopbx.com"/>
    </condition>
    <condition field="destination_number" expression="^662$">
        <action application="transfer" data="*99201 XML test1.djangopbx.com"/>
    </condition>
</extension>
